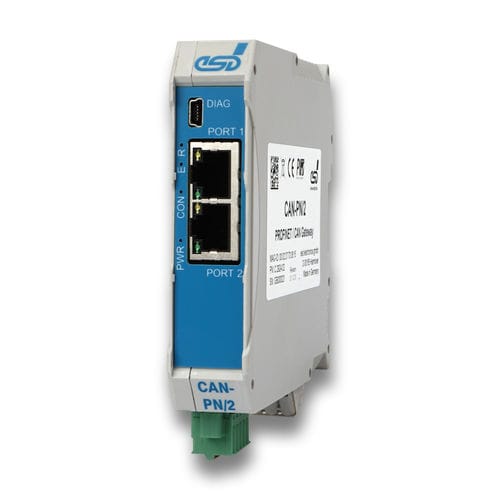

Communication gateway CAN-PN/2

industrialCANProfiNet

First PROFINET® IO to CAN FD Gateway for Fieldbus Communication Supports CAN FD with up to 64 bytes in the data field and 8 Mbit/s bit rate CAN FD is fully compatible with classic CAN (2.0A/B) with up to 1 Mbit/s Also available as Classic CAN only variant Further development of the proven CAN-PN Easy-to-configure Communication between PROFINET® and CAN Supports up to 512 statically configured CAN frames as modules in PROFINET®. Unlimited number of freely configurable CAN frames with Record Data Objects Reliable data transmission even with high CAN bus load Reliable Communication with advanced Functions for Diagnostics and Troubleshooting User-friendly analysis of the CAN bus via the USB interface CAN bus monitoring with our free Windows® GUI tool CANreal LEDs for easy reading of PROFINET® and CAN status The fieldbus gateway enables a fast and reliable connection of PROFINET® IO controllers with a CAN FD or CAN network. The module acts as a PROFINET® IO device with a maximum data transfer of 1440 bytes of input data and 1440 bytes of output data each. The CAN-PN/2(-FD) connects CAN FD and Classic CAN devices with applications e.g. on a SIMATIC-S7 or other controllers. Up to 512 static CAN send or receive frames can be configured and processed as modules. In addition, any number of dynamic CAN frames can be sent and received via Record Data Objects. The transmission of the CAN frames can be configured cyclically or also triggered by new data. The ISO 11898-2 compatible CAN interface allows a maximum data transfer rate of 1 MBit/s with Classic CAN or up to 8 MBit/s with CAN FD.
