CAN FD Network at USB 2.0
USB 2.0 high-speed interface with data rates of 480 Mbit/s
CAN FD interface with electrical isolation, ISO 11898-2 compliant
CAN FD bit rate up to 8 Mbit/s
Powered via USB
ARM® Cortex®-M7 Microcontroller
Time stamped CAN messages with a resolution of 1 µsec
Robust Alu-Micro Case with Status LEDs optionally available for DIN Rail Mounting
Aluminium case, dimensions 55 mm x 54 mm x 25 mm
Four LEDs show the state of the module
USB cable included
Optional DIN rail mounting according to IEC/EN 60715
Wide Range of Application
Silent mode support for analysing tools
Full compatibility with applications written for esd's NTCAN-API
CANopen® and J1939 protocol libraries are available
Firmware can be updated in the field
Powerful CAN FD Interface for PC

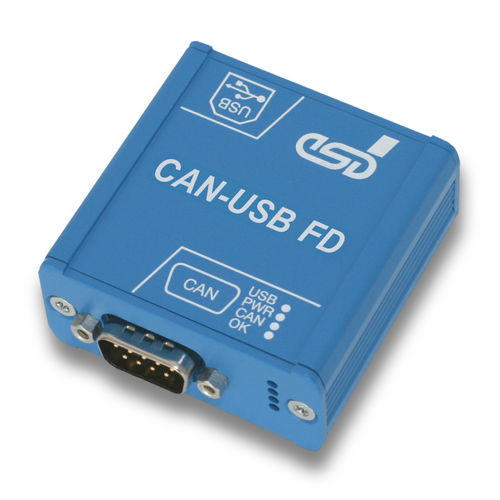

The CAN-USB/3-FD module is a USB to CAN FD-interface that uses an ARM Cortex-M7 microcontroller. The module supports the USB 2.0 high-speed interface with data rates of 480 Mbit/s.
The CAN-USB/3-FD-DINrail is equipped with a mounting rail holder for snapping onto TS35 DIN rails.
CAN FD Interface
CAN-USB/3-FD comes with an ISO 11898-1:2015-compliant CAN FD interface. The CAN FD interface allows a data-transfer rate of up to 8 Mbit/s and is electrically isolated from other potentials by means of a digital isolator and a DC/DC-converter.
