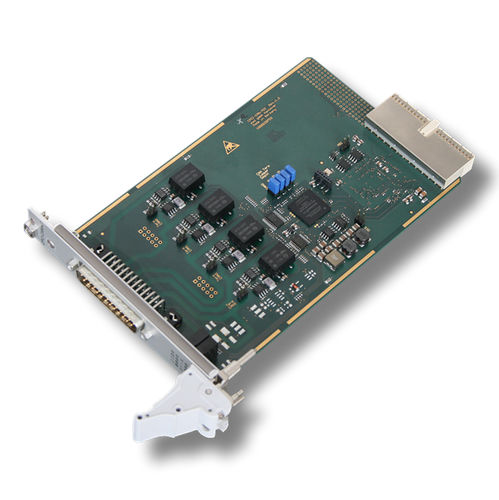

CANopen CompactPCI card CPCI-CAN/402-4

SAE J1939CAN

• 4 CAN FD or optional 4 CAN interfaces according to ISO 11898-2 • Bus Mastering and local data management by FPGA • PCI bus conform to PCI Local Bus Specification 3.0 • Selectable CAN termination on board • Supports MSI (Message Signaled Interrupts) • Optional extended temperature range: -40° C … +85° C Wide Range of Operating System Support and Advanced CAN Diagnostic • Software drivers for Windows® and Linux® included free of charge of CPCI-CAN/402-4 • Optional CAN layer 2 software drivers for real-time operating systems • CANopen®, J1939 and ARINC 825 protocol libraries are available • ISO 16845:2004 certified esd Advanced CAN Core (esdACC) technology • High resolution hardware timestamps Modern Transceiver Technology esd Advanced CAN Core (esdACC) technology offers highest CAN performance and diagnostic Customization on Request • IRIG-B input • Error simulation support • All signals via Rear I/O (P3) • 2x CAN FD via DSUB9 Free drivers for Windows and Linux included.
