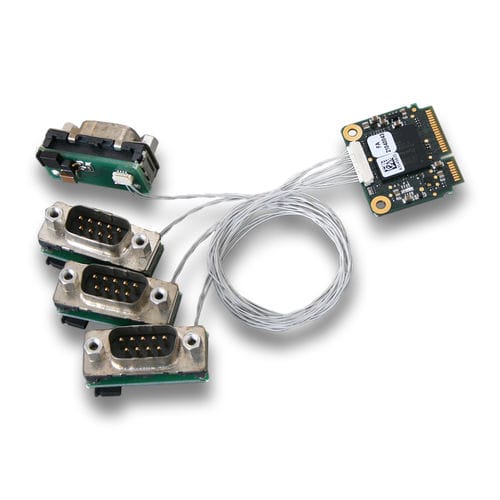

Mini PCI Express interface card CAN-PCIeMiniHS/402half-sizeCAN FDindustrial
Add to favorites
Compare this product
Characteristics
- Bus standard
- Mini PCI Express, half-size
- Bus
- CAN FD
- Applications
- industrial
Description
Extremely small PCI Express Card in Half-Mini Card Form Factor
• 4 CAN FD interfaces according to ISO 11898-2
• Bus mastering and local data management by FPGA
• PCIe® Mini interface according to Mini Card Electromechanical Spec. R1.2
• Supports MSI (Message Signaled Interrupts)
• Half-Size Mini Card (Type H2) form factor
• Optional version for extended operating temperature range (-40° C … +85° C)
Wide Range of OS Support and Advanced CAN Diagnostic
• Software drivers for Windows® and Linux® included
• Optional CAN layer 2 software drivers for real-time operating systems
• High resolution hardware timestamps
Optional flat CAN Interface Adapter with selectable CAN Termination
• Adapter with DSUB9 connector and selectable onboard CAN termination
