Switchable PMC cards XMC/PMC-CAN/402-FD-LIN-DIO

CAN BusCAN FD

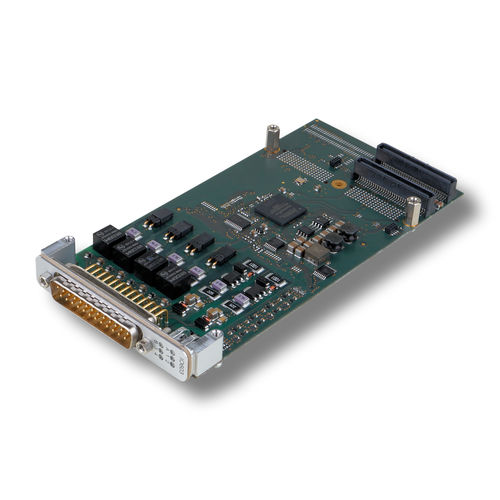

Switched Mezzanine Card (XMC) CAN bus interface card based on the esdACC with 4 CAN FD channels and, as an option, with digitally switchable CAN terminating resistors, 2 LIN interfaces and 4 digital IOs. XMC Board with esd Advanced CAN Controller (esdACC) • 4 high-speed CAN FD interfaces in accordance with ISO 11898-2, up to 8 MBit/s • Bus mastering and local data management via esdACC • PCI Express Spec. 1.1, Lanes x1 • CAN terminating resistor integrated on-board and can be activated as standard via jumper, alternatively switchable via software in the XMC-CAN/402-FD-LIN-DIO variant • MSI (Message Signaled Interrupts) support • All I/O signals accessible via 25-pin DSUB connector in the front panel Comprehensive Operating System Support and Extended CAN Diagnostics Options • Device drivers for Windows® and Linux® included free of charge • Real-time operating system support (RTOS) with device driver and NTCAN API available as an option for many RTOS • CANopen®, ARINC 825 and J1939 protocol libraries for CAN CC optionally available for application development • ISO 16845:2004-certified esd Advanced CAN Controller (esdACC) technology • High-resolution hardware timestamps Customization on Request • Extended CAN error simulation • All signals also via rear I/O • IRIG-B interface • Extended temperature range: -40° C ... +75° C for all variants
