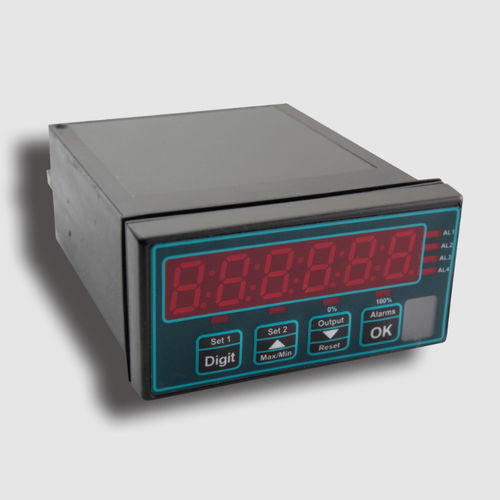

Process indicator PM8000

DCACcurrent loop

The PM8000 Series digital panel meters are easy to set up and commission, whilst offering extremely high precision and long term reliability. A MENU-FREE calibration system is employed with this panel meter design. This makes calibration and set-up of operating parameters very straightforward and radically simplifies this process compared with the usual menu arrangement used on most digital meters. The menu in this case is replaced by simple push buttons enabling zero, span, analogue output or alarms to be adjusted via buttons on the front of the panel. The 5 digit red LED display is standard, providing +/-30,000 count resolution and an accuracy of 0.10% of range. Input signals include 4-20 mA, 0-10 V, 1-5 V and 0-10 mA. A 24 V sensor excitation supply is provided and can be used to power an external transmitter current loop. Optional features include; AC or DC excitation, 4-20 mA or 0-10 Vdc analogue output, zero, two or four alarms/relays, various serial data outputs and splash proof cover. Please contact us with your specifications and we will advise you on the suitable model for your application. Panel Meter AC and DC supply options 5 digit LED display Direct access menu Functions for calibration, alarm setting and more Wide range of optional functions
