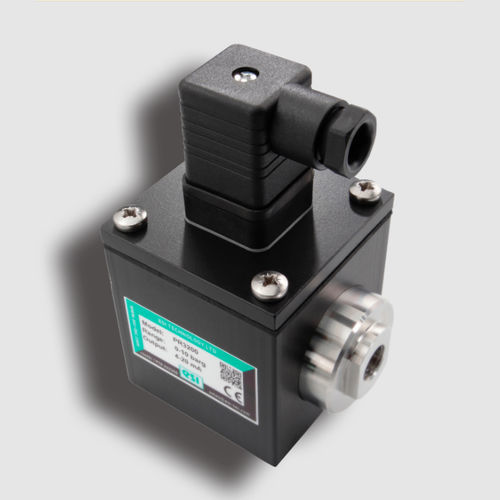

Differential pressure transmitter PR3200

piezoresistivesiliconanalog

The PR3200 differential pressure transmitter uses two titanium alloy pressure sensors, offering high stability and performance with true wet/wet operation, suitable for use with all liquids and gases compatible with stainless steel and titanium. The unique Silicon-on-Sapphire sensor technology provides outstanding performance and gives excellent stability over a wide temperature range. The sensor can endure higher over- pressures and provides superb corrosion resistance, with virtually no hysteresis. The outstanding insulation properties allow the sensor to operate over a very wide temperature range without loss of performance. Applications include flow measurement with orifice plates and mass flow meters, plus static differential pressure measurement and control in combustion chambers, also condition monitoring and filter monitoring in high pressure hydraulic systems or any application on liquid or gas requiring reliable differential pressure measurement. Electrical connector is DIN plug and socket. Access to zero and span adjustment is by removing top plate for easy on-site adjustment. Pressure connection as standard is via two 1/4" BSP female connections. A mounting plate is available for bulkhead mounting. Ranges available from 0-500 mbarDP to 0-200 barDP An optional ATEX and IECEx approved version of this product is available for explosion protection for flammable gases (zone 0), dusts (zone 20) and mining areas (group I M1). High Pressure Differential Transmitter Wide range of pressure ranges to 200 bar DP WET/WET or DRY/DRY operation Available for gauge reference or bi-directional measurement Durable designs for industrial and commercial installations
