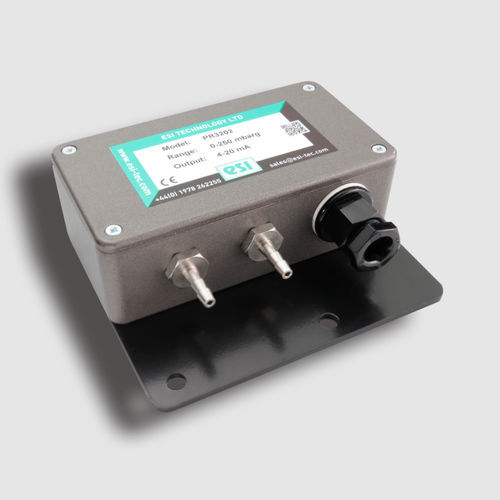

Relative pressure transmitter PR3202
differentialsilicon4-20 mA

relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative, differential
Technology
silicon
Output
4-20 mA
Fluid
for air
Material
aluminum
Protection level
EMC, ATEX
Other characteristics
low pressure
Pressure range

Min.: 0 mbar
(0 psi)

Max.: 1,000 mbar
(14.5 psi)

Description

Our low range air differential pressure transmitter provides an accurate solution for low pressure sensing with ranges available from 0-5 mbar to 0-1,000 mbarDP. Incorporating the latest silicon sensor and electronics technologies, these 4-20 mA transmitters are fully temperature compensated for unrivalled stability at very low pressure. Housed in an RFI shielded wall mountable box for EMC protection, these transmitters combine precise measurement for control at very low pressures, with the robustness and flexibility for industrial and commercial installations. An optional heavy-duty aluminium die-cast housing is available for the harshest environments. Access to screw terminal electrical connections and to zero span potentiometers is by removing the front covers, making installation and on-site adjustment. Cable entry is through a compression seal gland, or optional M20 conduit fitting. Standard pressure connections are to push-on hose fittings for 4mm ID hose. Ranges available from 0-5 mbar to 0-1,000 mbar in DP, gauge reference or bi-directional. Ultra-low pressure ranges from 0-25 Pa are also available. Applications include flow measurement with pitot tubes, orifice plates and mass flow meters, plus static pressure measurement and control, in combustion chambers and clean rooms, or any application on air or gas requiring reliable ultra-low differential pressure measurement. An optional ATEX and IECEx approved version of this product is available for explosion protection for flammable gases (zone 0), dusts (zone 20) and mining areas (group I M1). Low Pressure Differential Wide range of low pressure ranges from 0-5 mbar Available for gauge reference or
