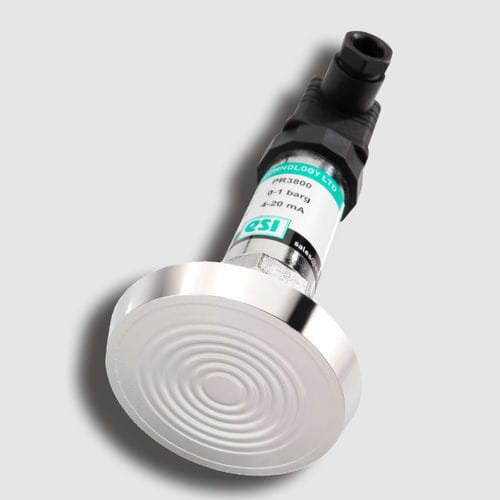

Relative pressure transmitter PR3800
membraneanalogflush diaphragm

relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Technology
membrane
Output
analog
Mounting
flush diaphragm
Material
stainless steel
Protection level
ATEX
Applications
process, for the petrochemical industry, for pharmaceutical applications
Other characteristics
custom, with diaphragm seal, sanitary, hygienic
Pressure range

Max.: 40 bar
(580.15 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 85 °C
(185 °F)

Min.: -20 °C
(-4 °F)

Description

The PR3800 series offer a range pressure transmitters with integrated or remote barrier seals for applications where direct media contact must be prevented. Robustly constructed from stainless steel, this range of pressure transmitters incorporates the latest strain gauge technology together with a custom IC amplifier offering excellent stability and accuracy over a long service life. The range offers a stable and accurate output signal of 4-20 mA with options for 0-5 V and 0-10 V. Typical applications include food processing, pharmaceutical, petrochemical, waste water and slurry handling. In these installations the process media may corrode the sensing diaphragm or clog the narrow pressure inlet on a standard transmitter. The flush membrane can be easily cleaned for long term reliability and outstanding performance. For hygienic applications the PR3800 series provides a sanitary grade pressure fitting. Seals are available in a variety of forms and materials for a wide range of applications and can be directly attached to the proposed connection or remotely via stainless steel capillary. Pressure ranges available from 0-200 mbar to 0-40 bar. Easy clean flush membrane to prevent clogging Thick film sensor technology for long service life Range of sanitary grade pressure fittings ATEX/IECEx option available (includes M1 for mining applications)
