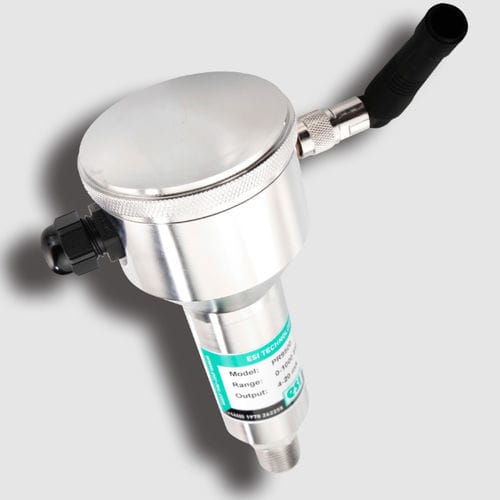

Relative pressure transmitter PR9500

siliconanalogwireless

pressure transmitter, used in conjunction with the RX9500 receiver, provides a wireless solution for safe operation in tough industrial and process applications eliminating the need for hard wiring. The PR9500 transmitter can be situated in inaccessible areas, allowing the operator to monitor at safe distances on site. No hard wiring means lower installation cost and maintenance. The unique Silicon-on-Sapphire sensor technology provides outstanding performance and gives excellent stability over a wide temperature range. The sensor can endure high over-pressures and provides superb corrosion resistance with virtually no hysteresis. The outstanding insulation properties of the sapphire allows the sensor to operate over a very wide temperature range without loss of performance. Robustly constructed from stainless steel, the PR9500 transmitter offers optimum stability and repeatability in all industrial and process environments. The PR9500 transmitter operates by sending data signals by radio telemetry to a RX9500 receiver which provides a 4-20 mA output signal. Powered by an internal battery or 8-30 Vdc supply, the transmitter is capable of sending data signals at distances of up to 500 feet/ 200 metres. Typical applications include mechanical and civil engineering installations, process plant, water utilities, petrochemical, power generation and any application on fluid or gas requiring a stable, repeatable and accurate pressure measurement at distances on site. Wireless for lower installation cost and maintenance Silicon-on-Sapphire sensor technology for outstanding performance and reliability Wetted parts in various materials Paired with RX9500 radio receiver
