AC servo-amplifier SC30
1-axisRS-485EtherCAT

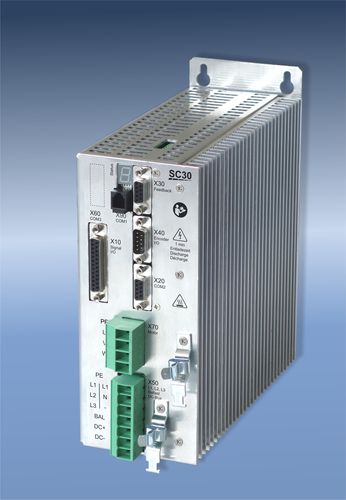

AC servo-amplifier - SC30 - esitron-electronic - 1-axis / RS-485 / EtherCAT
AC servo-amplifier - SC30 - esitron-electronic - 1-axis / RS-485 / EtherCAT
Add to favorites
Compare this product

Go to the esitron-electronic website for more information

Characteristics

AC/DC
AC
Number of axes
1-axis
Output signal
RS-485, EtherCAT, CANopen, PROFIBUS, ProfiNet, PROFIBUS DP
Product applications
for synchronous motor, positioning, 3D motion, industrial, for servo motors
Voltage
230 V, 400 V
Other characteristics
compact, torque control, with speed control, intelligent, four-quadrant, programmable
Intensity

Min.: 15 A

Max.: 30 A

Description

Digital Servo amplifier Power supply: 230V AC or 400V AC Brushless AC-technology High dynamic, up to 30A RMS current Feedback input for resolver or absolute encoder (Hiperface, EnDat) Integrated positioning Speed and torque control Digital 4Q-controller Integrated ballast circuit with resistor Control for holding brake Analogue set-point: 0…10V, +/-10V, 0/4…20mA Fieldbus: Profibus, Profinet, EtherCAT CoE, CANopen CiA 402, RS485 Function blocks for Siemens S7, TIA Portal Digital inputs and outputs Safe Torque Off, Category 3, PL e (EN ISO 13849-1)
