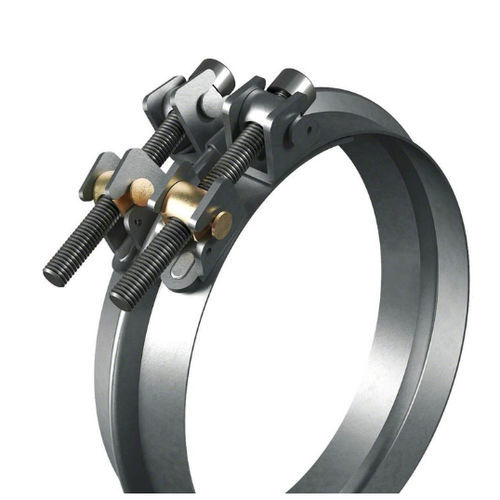

Screw tube clamp 1W series

galvanised steelstainless steel

The ESKATE® Wide-band beaded clamping ring for beaded long and spiral ducts is a special developed and already proven clamping ring of 45 mm width for the connection of long- and spiral seam pipes with a flanged edge of 6 mm height. This clamping ring is ideally suited for use on longitudinally welded pipes with manually flanged pipe ends. The one-part clamping ring has a bead centered without a seal, since this clamping ring is mostly used without an additional seal. If desired, the profile can be equipped with an Egobon density insert. In order to guarantee a perfectly centered system to the pipe connection, the ESKATE® wide band tapping clamp is fitted with two screw connections. Very short lead times due to all year round availability from stock. *Custom and non-standard factory sizes available on request.
