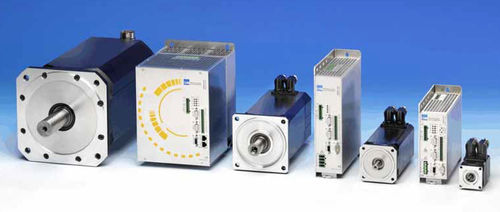

AC servo-drive TrioDrive D/xS

digitalanalogFieldbus

TrioDrive D/xS Characteristics of the TrioDrive D/xS Servo Drives ■ Digital servo drives for AC servo motors and direct drives (torque motors, linear motors) ■ Compact devices for control cabinet installation, complete with built-in power supply for direct connection to 230 V AC (wide-range input) ■ Integrated safety system, wear-free, two-channel (PL e according to ISO 13849-1 and SIL 3 according to IEC 61800-2) ■ Design conforms to EMC requirements (CE marked; class A standard, class B through accessories) ■ Switching frequency 8 or 16 kHz selectable for optimum dynamic characteristics and small motor power loss ■ High dynamics and control quality due to signal processor for digital control of current and speed (controller cycle time 62.5 µs) ■ Position control loop (16-bit microcontroller, cycle time 1 ms) integrated, setting the target positions via communication interfaces (standard) or internal positioning control with 500 blocks (option) ■ Rapid acceleration, deceleration, and reversing of the motor by momentary current increase to three times the rated current ■ High processor power for fast axis control and communication ■ Extensive technology functions, axis synchronization etc. 8 digital inputs, 4 digital outputs, additionally 2 analog inputs and 2 analog outputs (partly optional) ■ Communication via fieldbus interface according to DRIVECOM profile 22 or serial port, RS 232C (standard) ■ Easy wiring, since all connections can be plugged in at the front and at the top ■ Certification according to UL (CSA on request) ■ Comfortable commissioning and diagnosis using a personal computer
