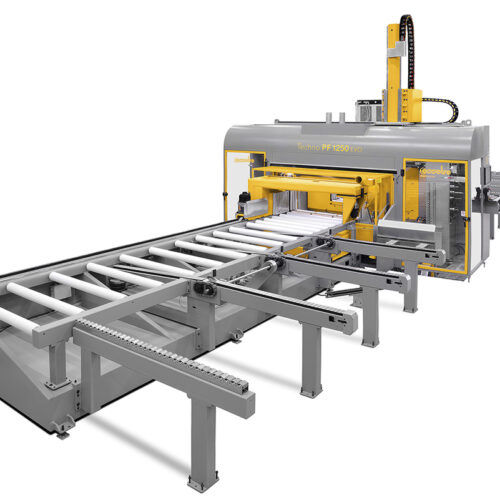

5-axis CNC machining center TECHNO PF 1250 EVO

verticalfor woodHSK F63

WORKING AREA The working area inside the cabin consists of 2 independent opposing operating units, one upper and one lower, complété with 5-axis milling heads in continuous interpolation and 12 kW electrospindles at 7000 rpm. The tool holder is HSK63F. INFEED HANDLING SYSTEM Parts are pre-loaded by a NC automatic clamp; a second CNC clamp will checkthe correct section and ensure précisé position of the part to be processed. The system also includes a second gripper, again managed by the CN, which checks the correct section of the piece to be machined. LOADING AREA Large pre-loading area, designed to load one or more pieces with a maximum width of 1300 mm, which will then be managed by the infeed clamps. OUTFEED HANDLING SYSTEM It consists of an automatic clamp managed by the NC, which allows the workpiece to be moved from the cabin to the exit zone for successive évacuation and storage in the unloading area. A second clamp is also installed in the unloading area to handle the part during processing. CONSOLE A control console complété with NC is installed on the machine structure using a hinge system, allowing it to be oriented in multiple positions. A remote control panel is available complété with manual Controls of the axis movement, START, STOP and RESET of the program. E-LI\/E SOFTWARE The machine is controlled by the new Essetre E- Live Software, with three-dimensional display of the workpiece and relative processing. Its versatility allows it to interface with the most well-known Cad Cam programs specific for wooden structures. The software is also equipped with a simulation and anti-collision system. An automatic printer interfacing with the NC
