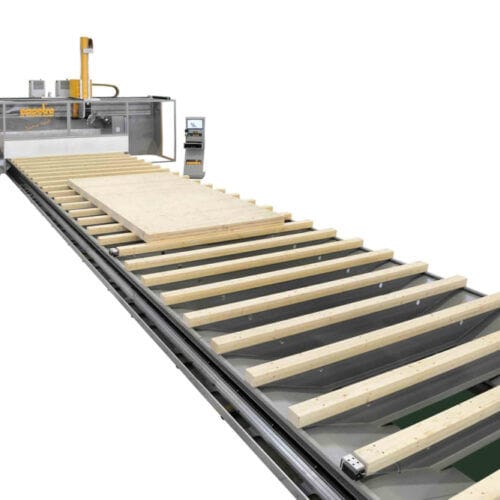

5-axis CNC machining center Techno Multiwall

verticalbridgefor wood

NC working centre to process curved beams, X-LAM / CLT walls, SIPS walls and frame walls with dimensions up to 6000 mm in width, 480 mm in thickness and unlimited length. BLADE UNIT Spécial 1200 mm diameter 5-axis blade unit with 55 kW motor in S6 at 400 rpm for cutting walls up to AOOmmthick. MILLING UNIT 5-axis milling unit with cone HSK80F and 53 kW motor in S6 at 6000 rpm, complété with 9-positions tool changing magazine. PORTALFRAME The working area consists of a moving portai f rame integrated with the structure. WALL WORKING AREA The wall working area consists of a basement in electro-welded mechanical carpentry on which the mobile portai frame slides and on which différent types of walls can be processed thanks to the many applicable options. It is also designed to convey chips onto a motorised conveyor belt. REFERENCES Hiding references for the positioning of the piece. E-LIVE SOFTWARE The machine is controlled by the new Essetre E- Live Software with three-dimensional display of the workpiece and relative processing. Its versatility allows it to interface with the most well-known Cad Cam programs specific for wooden structures. The software is also equipped with a simulation and anti-collision system.
