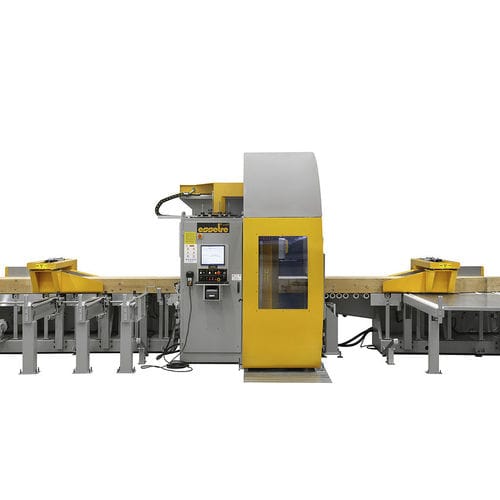

6-axis CNC machining center Techno Turn Evo

verticalfor woodHSK F63

Thanks to the innovative 360° rotating precision ring nut, the solid and glulam beams are automatically processed on 6 sides without the need to rotate them. WORKING UNIT Patented 6-axis milling head with double exit motor: one with HSK 63F tool connection; the other with a flange connection supporting the blade with diameter600mm. CLAMPS Automatic infeed and outfeed clamps controlled by the numerical control. TOOL MAGAZINE Automatic rotative tool changer magazine with 12 positions. UNLOADING SYSTEM Automatic unloading system with stocking length up to 13 meters. E-LIVE SOFTWARE The machine is controlled by the new Essetre E- Live Software with three-dimensional display of the workpiece and relative processing. Its versatility allows it to interface with the most well-known Cad Cam programs specific for wooden structures. The software is also equipped with a simulation and anti-collision system. WORKING UNIT Patented 6-axis milling head with double exit motor: one with HSK 63F tool connection; the other with a flange connection supporting the blade with diameter600mm.
