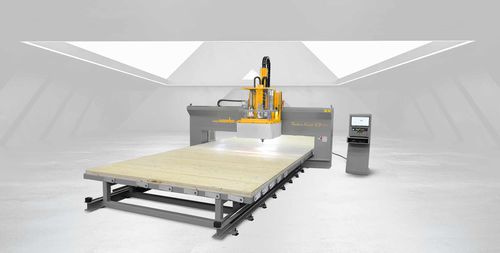

5-axis CNC machining center Techno Multiwall XS

verticalmobile gantryfor wood

Suitable for processing panels with dimensions: frame walls: length 9000 x width 3200 x h 400 mm CLT or X-LAM walls: length 13500 x width 3500 x h 120 mm. BEAMS LOCKING SYSTEM Flexible beams locking system for frame walls with pneumatic pistons. MILLING UNIT 5-axis milling unit with 11 Kw electrospindle with tool changing and automatic tool changing magazine from 4 to 8 positions. STAPLING AND NAILING Integrated automatic group for stapling and nailing on the Z axis of the 5-axis head. REFERENCES Hiding references for the positioning of the walls. CONSOLE The control console complété with NC is installed on the machine structure through a hinge system, which allows it to be oriented in multiple positions. A remote control panel is available complété with manual Controls of the axis movement, START, STOP and RESET of the program. E-LIVE SOFTWARE The machine is controlled by the new Essetre E- Live Software with three-dimensional display of the workpiece and relative processing. Its versatility allows it to interface with the most well-known Cad Cam programs specific for wooden structures. The software is also equipped with a simulation and anti-collision system. BEAMS LOCKING SYSTEM Flexible beams locking system for frame walls with pneumatic pistons. MILLING UNIT 5-axis milling unit with 11 Kw electrospindle with tool changing and automatic tool changing magazine from 4 to 8 positions. STAPLING AND NAILING Integrated automatic group for stapling and nailing on the Z axis of the 5-axis head.
