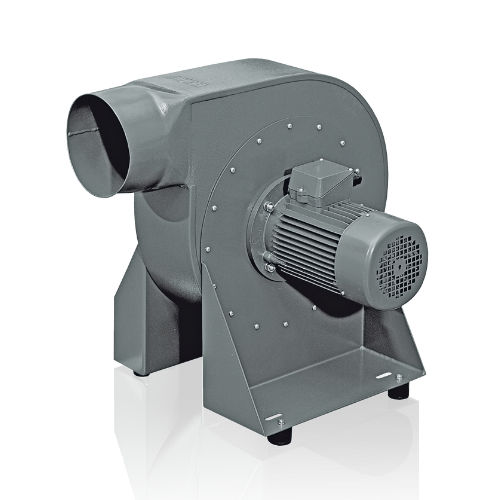

Air blower RG seriesradialsingle-stagefor ventilation
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- radial
- Number of stages
- single-stage
- Applications
- for ventilation, filter, extrication, for granulates
- Energy class
- IE3
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 8,000 m³/h
(282,517.334 ft³/h)- Operating pressure
Min.: 0 Pa
(0 psi)Max.: 3,950 Pa
(0.573 psi)- Nominal power
Min.: 0.55 kW
(0.748 hp)Max.: 7.5 kW
(10.197 hp)- Sound level
Min.: 80 dB
Max.: 84 dB
- Length
Min.: 535 mm
(21.06 in)Max.: 820 mm
(32.28 in)- Depth
Min.: 450 mm
(17.7 in)Max.: 1,000 mm
(39.4 in)- Height
Min.: 480 mm
(18.9 in)Max.: 610 mm
(24 in)
Description
Dust, fumes or vapours need not always be filtered. RG extraction fans designed for extraction operation work together with capture elements (e.g. an extraction arm) to extract dust- and fumous air and directed to the required area unfiltered via a pipe system. The RG series devices are suitable for granulates or as a feed blower for ventilation of rooms, tanks and shafts.
