- Lift-off hinge
- Estampaciones EBRO, S.L.

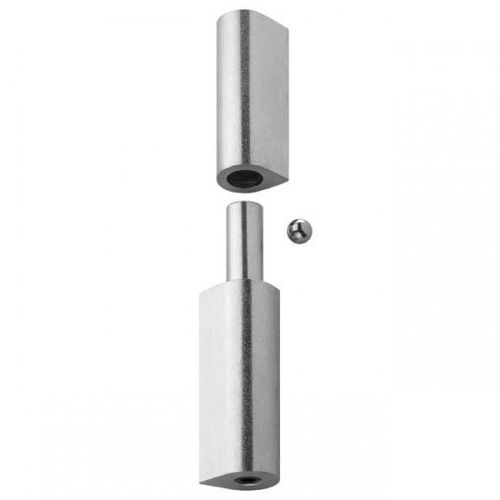

Drop shaped lift-off hinge lift-offsteelstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- lift-off
- Material
- steel, stainless steel
- Installation
- weld-on
- Opening angle
- 180°
- Other characteristics
- adjustable, drop shaped
- Length
Min.: 80 mm
(3.15 in)Max.: 150 mm
(5.906 in)- Width
Min.: 14 mm
(0.551 in)Max.: 23 mm
(0.906 in)- Thickness
Min.: 6 mm
(0.236 in)Max.: 10 mm
(0.394 in)
Description
Regulating drop profile hinge
Dimensions:
Cod. 617: 14 x 80 M.6
Cod. 618: 16 x 100 M.8
Cod. 619: 20x 120 M.10
Cod. 620: 23 x 150 M.10
The regulating drop profile hinges facilitate the welding as well as that, they have a regulating system which allows the regulation of the door’s height once installed.
