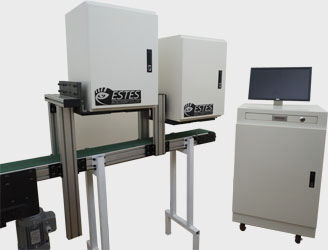

Camera inspection system MV-MP-D

surface defectfor the printing industry

Improve Product Quality Reduce Labor Costs Raise Production Efficiency Improve Enterprise Image Introduction Of Equipment : On line end surface defect vision inspection equipment is used for inspecting the end surface defects. Through one or more different function cameras to inspect the lining compound side(we call front-side), groove and backside. It adopts high contrast industrial camera to take the can image, and transmit to the computer through the image acquisition card, and then the image will be judged and analyzed by special image processing software, and finally the bad products will be kicked out accurately by the ejection device. Equipment Features : Defects list for shell: Curling: no curling, double shells, less curling, curling damage, curling stain. Groove: no compound, miss compound, incomplete lining, overflow lining Shell surface: stain, scratch, deformation, damage Printing: printing out of position, miss printing, ink stain etc. Other: mixed Defects list for aerosol cone and dome: Curling: no curling, double ends, less curling, curling damage, curling stain Groove: no compound, incomplete compound, miss compound, compound overflow Surface: stain, deformation, scratch Non-lining surface rolling: rolling damage, rolling pollution, rolling diameter, rolling wrinkle Defects list for EOE: Curling: no curling, double shells, less curling, curling damage, curling stain Groove: no compound, miss compound, incomplete lining Surface (not-tab area): stain, deformation Surface (tab area): stain, damage, out of position Rivet: stain, rivet out of position, incorrect diameter Scoring coating: no lacquer, miss lacquer, lacquer splashing Other: mixed
