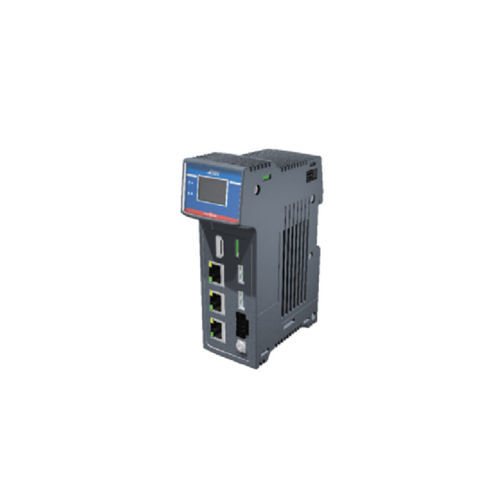

128-axis motion controller FLEX-7 MIDI

analogEthernetdigital

Flex-7 Midi is TRIO 's next generation of high-performance , compact, flexible machine controller. Supports 128 motion axes via EtherCAT , servo cycles time as low as 125µs . Flex-7 Midi Benefiting from a redesigned communication interface and a quad-core processor, the Flex-7 offers a step change in performance within Trio's range of flexible machine controllers. Flex-7Midi has independent cores dedicated to motion and communication, combined with Gigabit Ethernet hardware, to handle complex motion and high-speed communication interfaces for high-axis-count machines. Flex-7 allows flexible port configuration on central Ethernet ports. Allows software to select a Gigabit Ethernet port (for communication with a PLC or factory network) or a second EtherCAT port (for allowing machine partitioning). TrioBASIC (Trio's proven multitasking programming language) or the industry standard IEC-61131-3 using the powerful MotionPerfect application development software. Flex-7 is fully compatible with Trio's Flexslice system, which consists of a range of high-performance I/O peripherals, including digital and analog I/O as well as stepper controllers, temperature measurement, and encoder interfaces. Based on Trio's advanced movement core, the entire set of movement functions is available in all languages, making complex movements simple. FUNCTIONAL FEATURES 1、Up to 128 EtherCAT axes with servo cycles as low as 125µs 2、Motion-iX core with new communications architecture 3、Gigabit Ethernet port 4、Flexible Ethernet or EtherCAT port configuration 5、Fully integrated into MotionPerfect 6、Can be programmed with TrioBASIC and PLCopen based IEC61131-3
