4-axis motion controller MC404Z

stepperEthernetdigital

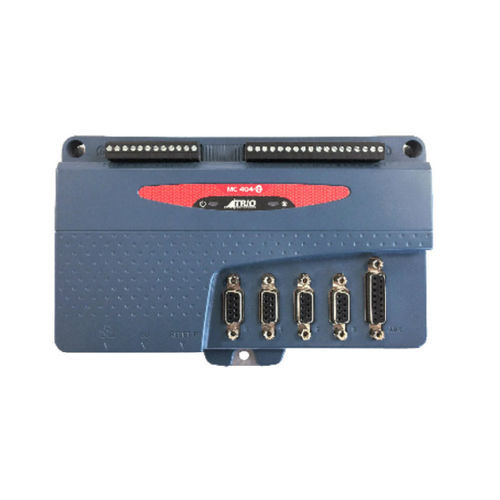

MC404Z supoorts 4 Steppers or 3 Steppers + encoder input + 16DIN, 8xDO, Hardware linked outputs for camera trigger etc. The MC404-Z is a low cost panel mount Motion Coordinator, targeting high volume stepper applications. With just one version that has all features as standard, there is no requirement for axis configuration with Feature Codes before use. It is based on Trio’s high-performance ARM Cortex-M7 double-precision technology and provides 4 axes of pulse+direction or quadrature output control for stepper drives or pulse-input servo drives. Trio uses advanced FPGA techniques to reduce the size and fit the pulse output and servo circuitry in a compact panel mounted package. The MC404-Z is housed in a rugged plastic case with integrated earth chassis and incorporates all the isolation circuitry necessary for direct connection to external equipment in an industrial environment. FUNCTIONAL FEATURES 1、Advanced 4 Axis Pulse + Direction control 2、Linear, Circular, Helical and Spherical Interpolation 3、Flexible CAM Shapes, Linked Motion 4、Biss, EnDAT and SSI Absolute Encoder Supported 5、Hardware Linked Outputs for Camera / Laser Control 6、Ethernet-IP / Modbus TCP / Ethernet Interface Built-In 7、125 – 4000µsec Selectable Servo Update 8、Precise 64 bit Motion Calculations on ARM Cortex-M7 Processor 9、Motion-iX core Technologies for Programming Including: IEC 61131-3 Programming, Robotic Transforms, Text File Handling 10、Micro SD Memory Card Slot 11、NPN Digital Outputs 12、CANopen I/O Expansion 13、RoHS, CE Approved
