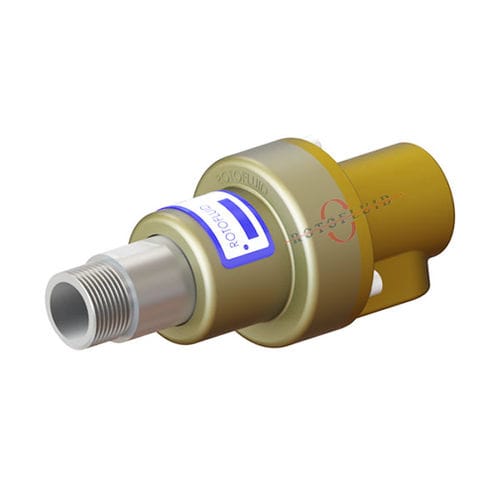

Water rotary joint 50 series
for hot oilfor steambrass

Water rotary joint - 50 series - esz makina - for hot oil / for steam / brass
Water rotary joint - 50 series - esz makina - for hot oil / for steam / brass
Water rotary joint - 50 series - esz makina - for hot oil / for steam / brass - image - 2
Water rotary joint - 50 series - esz makina - for hot oil / for steam / brass - image - 3
Water rotary joint - 50 series - esz makina - for hot oil / for steam / brass - image - 4
Water rotary joint - 50 series - esz makina - for hot oil / for steam / brass - image - 5
Add to favorites
Compare this product


Characteristics

Medium
for water, for hot oil, for steam
Material
brass, cast iron, bronze, stainless steel
Other characteristics
radial, dual-flow, single flow
Rotational speed

Max.: 100 rpm
(628.32 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

Max.: 10 bar
(145 psi)

Min.: 0 bar
(0 psi)

Nominal size

Max.: 50 mm
(1.969 in)

Min.: 8 mm
(0.315 in)

Description

For WATER 3/4" (DN20) - 1” (DN25) - Single and dual fl ow - Self supported rotating joint - Radial housing connection - Balanced mechanical seals - Easy and quick replacement of sealing elements - Cast iron housing - Forged brass end cap - Stainless steel internal parts - Composite bearing Application Parameters Max. Water Pressure : 10 bar 150psi Max. Water Temperature : 120°C 250°F Max. Speed : 100 min-1 100 RPM Avoid working with max. speed at max. pressure
