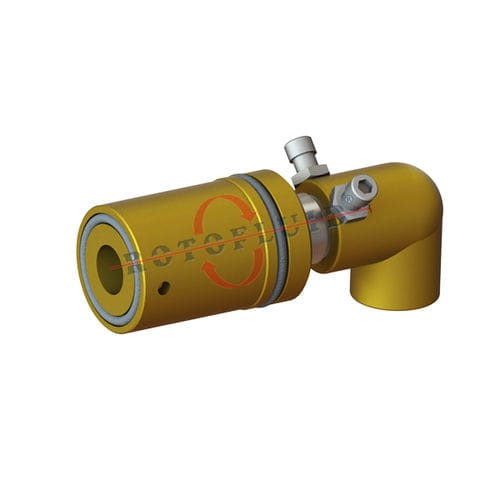

Water rotary joint 300A seriesmulti-passagebrassbronze
Add to favorites
Compare this product
Characteristics
- Medium
- for water
- Number of passages
- multi-passage
- Material
- brass, bronze, stainless steel
- Other characteristics
- dual-flow, shaft-mounted, single flow
- Rotational speed
Max.: 100 rpm
(628.32 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Pressure
Max.: 10 bar
(145 psi)Min.: 0 bar
(0 psi)- Nominal size
Max.: 40 mm
(1.575 in)Min.: 15 mm
(0.591 in)
Description
For WATER at Continuous Casting Machines
1/2” (DN15) – 1 1/2” (DN40)
- Single and dual fl ow design
- In the shaft mounted design
- Brass housing and elbow
- Stainless steel shaft and internal pipe
- Assembled with customers counter fl ange
- Full fl ow design
- Complete in stainless steel as option
Application Parameters
Max. Water Pressure : 10 bar 150psi
Max. Speed : 100 RPM 100 min-1
Max. Temperature : 120°C 250°F
Avoid working with max. speed at max. pressure
