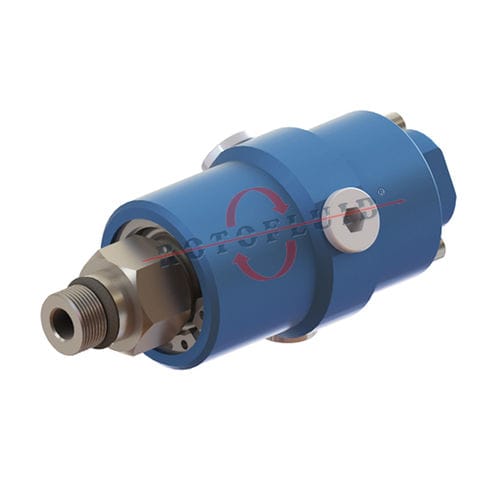

Water rotary joint 800S seriesmulti-passagehydraulicaluminum
Add to favorites
Compare this product
Characteristics
- Medium
- for water
- Number of passages
- multi-passage
- Applications
- hydraulic
- Material
- aluminum, stainless steel
- Other characteristics
- radial, single flow
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 15,000 rpm
(94,247.78 rad.min-1)- Pressure
Min.: 0 bar
(0 psi)Max.: 70 bar
(1,015 psi)- Nominal size
Min.: 8 mm
(0.315 in)Max.: 10 mm
(0.394 in)
Description
For COOLANT, WATER
1/4" (DN08) - 3/8 (DN10)
- Single fl ow
- Self supported rotating joint
- Stainless steel shaft
- Aluminium housing
- Radial or axial connection
- Vent holes on housing
- Slingers for bearing protection
- Full fl ow
- Balanced silicon carbide mechanical seals
- Tuc Seals as option
Application Parameters
Max. Water Pressure : 70 bar 1000psi
Max. Speed : 15.000 RPM 15.000 min-1
Max. Temparature : 120°C 250°F
Avoid working with max. speed at max. pressure
