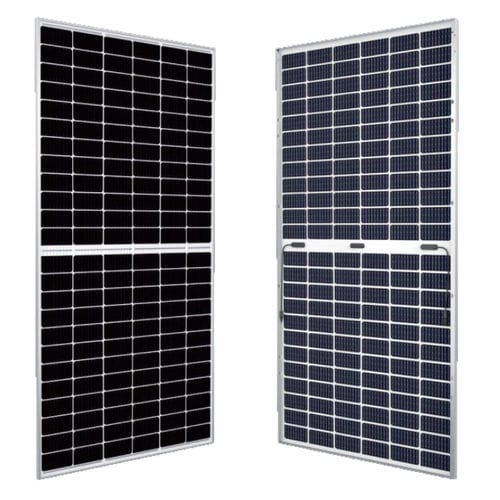

Monocrystalline silicon PV module ET-M772BH TW/TB seriesPERCTUVIEC
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline silicon
- Features
- PERC
- Certifications
- TUV, IEC, CE
- Peak power (Wp)
Min.: 398 W
Max.: 550 W
- Open-circuit voltage
Min.: 46.2 V
Max.: 49.9 V
- Short circuit current
Min.: 11.3 A
Max.: 14 A
- Max power voltage
Min.: 37.2 V
Max.: 42 V
- Max power current
Min.: 10.7 A
Max.: 13.1 A
- Module efficiency
20.5 %, 20.7 %, 20.9 %, 21.1 %, 21.3 %
- Lenght
2,279 mm
(90 in)- Width
1,134 mm
(45 in)- Height
35 mm
(1 in)- Weight
28 kg
(61.73 lb)
Description
• Enhanced safety by excellent fire resistance
• Perfect for sandy, snowy and high latitude regions
• Bifacial technology enables additional energy harvesting from rear side(up to 25%)
• Lower operating temperature, more reliable
• Cut cell, Less internal power loss, Less mismatch loss
