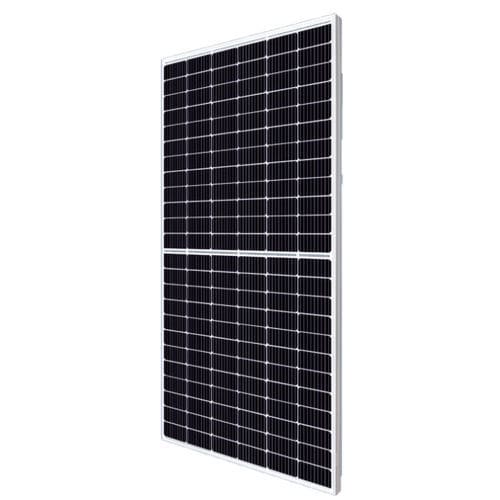

Monocrystalline silicon PV module ET-M772BH WW/WB seriesPERCTUVIEC
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline silicon
- Features
- PERC
- Certifications
- TUV, IEC, CE
- Peak power (Wp)
530 W, 535 W, 540 W, 545 W, 550 W
- Open-circuit voltage
49.3 V, 49.5 V, 49.6 V, 49.8 V, 49.9 V
- Short circuit current
13.7 A, 13.8 A, 13.9 A, 14 A
- Max power voltage
41.3 V, 41.5 V, 41.6 V, 41.8 V, 42 V
- Max power current
12.8 A, 12.9 A, 13 A, 13.1 A
- Module efficiency
20.5 %, 20.7 %, 20.9 %, 21.1 %, 21.3 %
- Lenght
2,279 mm
(90 in)- Width
1,134 mm
(45 in)- Height
35 mm
(1 in)- Weight
28 kg
(61.73 lb)
Description
High Voltage
UL and IEC 1500V certified; lowers BOS costs and yields better LCOE
High Efficiency
Higher module conversion efficiency benefit from half cell structure (low resistance characteristic).
PID Resistance
Excellent Anti-PID performance guarantee limited power degradation for mass production.
Low-light Performance
Advanced glass and cell surface textured design ensure excellent performance in low-light environment.
Severe Weather Resilience
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance certified by TUV SUD.
