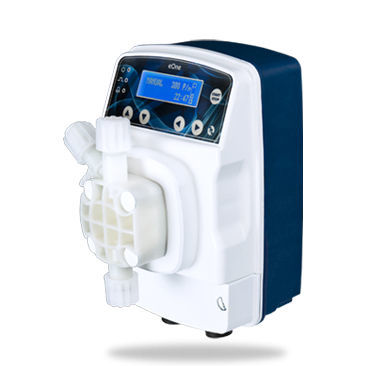

Diaphragm pump Eone Mf

polymerairsolenoid-driven

eOne MF is an electronic dosing pump with a “CLEVER” control of power, depending on the effective dosing conditions • “Clever” control of power depending on the effective dosing conditions a. Flow rate control depending on pressure variation of the installation b. Energy saving c. Low heating of the device d. Low wear of mechanical and electrical components • High injection frequency (up to 300 pulses/min) • Multitension power supply, 100…250Vac (50/60Hz) • UNDERLOAD function – suction alarm, for low (end) chemical level, blocking suction valve or damaged suction tube • OVERLOAD function – dosing alarm, for over pressure inside the pump head, for excessiv operating pressure inside the dosing pipeline, for blocking delivery valve… • Diaphragm: PTFE • External casing: Reinforced PP and chemical resistant. • Pump head made of PP or PVDF, polymer highly resistant, with ceramic ball valves, with all sealings in FPM or TFE/P, which is a new elastomer compatible with a wide variety of chemicals • Manual air bleed pump head. Automatic air bleed available on request • Manual flow rate regulation 0÷100%, 0÷300% impulses/min • Proportional dosing modes (1 x n; 1 : n; 1 x n M; ml x I; L x I; ml x m3; PPM) • Flow rate control depending on pressure variation of the installation • Energy saving • Low heating of the device • Low wear of mechanical and electrical components • Daily and weekly timer (16 programmes/day) • Relay output • 4-20 mA control • Flow sensor input • Stroke rate: from 180 to 300 impulses/min
