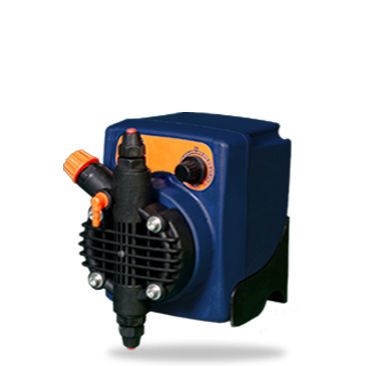

Air pump PKX MA/Asolenoid-drivendiaphragmstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- air
- Operation
- solenoid-driven
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial
- Applications
- metering, dosing, adjustment, bleed
- Material
- PTFE, plastic, PP, ceramic, PVDF
- Voltage
- 24 V, 12 V, 230 V, 120 V
- Protection level
- IP65
- Other characteristics
- standard, small, flow, reinforced, wall
- Flow
Max.: 10 l/h
(2.64172 us gal/h)Min.: 1 l/h
(0.26417 us gal/h)- Pressure
Max.: 7 bar
(101.526 psi)Min.: 1 bar
(14.504 psi)- Length
106 mm
(4 in)- Width
147.5 mm
(5.81 in)- Height
158 mm, 188 mm
(6.22 in, 7.4 in)
Description
PKX metering pumps series are an ideal solution for small dosing with an exceptional price/quality ratio;
the mounting bracket (included) simplifies the installation on a wall or on horizontal basin.
• Max stroke rate: 120 impulses/min
• Manual air bleed pump head
• IP65 protection degree
• Wall or foot mounting plastic bracket (included)
• STD Power Supply: 230 Vac 50-60 Hz
• PTFE diaphragm
• Available with removable power cable
• Extra silent version available upon request
• Pump head options include PVDF with ceramic balls and Auto-bleeding
• CE (standard) and CSA certied (on request)
• Manual flow rate adjustment from 0 – 100%
• Level probe input (available for PKX MA/AL only)
• Optional power supply: 120 Vac 50-60 Hz / 12Vdc / 24Vac-Vdc
• Flashing LED under working conditions
• PP reinforced housing
• PP pump head with Lip valves
