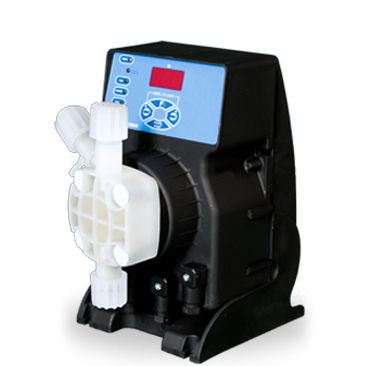

Water pump DLX VFT/MBB seriesacidairsolenoid-driven
Add to favorites
Compare this product
Characteristics
- Fluid
- water, acid, air
- Operation
- solenoid-driven
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial
- Applications
- metering, dosing, for control, adjustment, bleed
- Material
- PTFE, plastic, PP, ceramic, PVDF
- Voltage
- 220 V, 240 V
- Protection level
- standard, IP65
- Other characteristics
- standard, automatic, flow, digital, wall
- Flow
Max.: 20 l/h
(5.28344 us gal/h)Min.: 1 l/h
(0.26417 us gal/h)- Pressure
Max.: 15 bar
(217.557 psi)Min.: 2 bar
(29.008 psi)- Power
37 W, 58 W
(0.05 hp, 0.08 hp)- Length
120 mm
(5 in)- Width
144 mm, 186 mm
(5.67 in, 7.32 in)- Height
213 mm, 221 mm
(8.39 in, 8.7 in)
Description
DLX VFT/MBB model consists of a series of metering pumps performing a proportional dosing via a contact water meter
The high reliability and the price competitiveness make the DLX series the best proposal in
dosing systems market. On request, DLXB (foot mounted) series can be supplied with a stroke
length control, which enables - by a dial - to adjust the dosing volume between 20-100%.
• Anti-acid plastic casing
• IP65 protection degree
• Wall (DLX) and Foot mounted (DLXB):
• Standard pump head: PP or PVDF body, PTFE diaphragm, ceramic balls, FPM sealings*
• Strokes frequency: 120 strokes/min (from 1l/h to 15l/h) - 150 strokes/m (20 l/h)
• CE (standard) and CSA certied (on request)
• 7 segments display
• Operating functions:
Digital Manual flow rate adjustment from 0÷100%
Proportional dosing functions by reed water meter: 1xn; 1xn (m) 1:n;
• Manual air bleed pump head; from 5 to 15l/h automatic air bleed available on request
• Relay Output
• Level switch connector
