Diaphragm pump DLX pH-Rx-Cl/M series
acidairsolenoid-driven

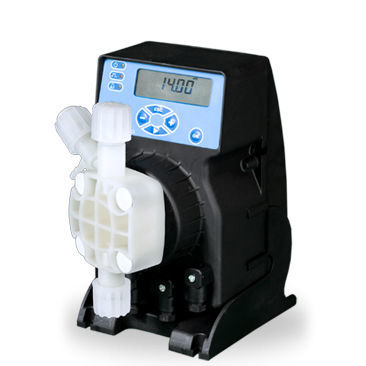

Diaphragm pump - DLX pH-Rx-Cl/M series - Etatron D.S. - acid / air / solenoid-driven
Diaphragm pump - DLX pH-Rx-Cl/M series - Etatron D.S. - acid / air / solenoid-driven
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Fluid
acid, air
Operation
solenoid-driven
Mobility
stationary
Domain
industrial
Applications
dosing, for control, bleed
Material
PTFE, plastic, PP, ceramic, PVDF
Protection level
standard, IP65
Other characteristics
standard, automatic, wall
Flow

Min.: 1 l/h
(0.26417 us gal/h)

Max.: 20 l/h
(5.28344 us gal/h)

Pressure

Min.: 3 bar
(43.511 psi)

Max.: 20 bar
(290.075 psi)

Power

37 W, 58 W
(0.05 hp, 0.08 hp)

Fluid temperature

Min.: 0 °C
(32 °F)

Max.: 100 °C
(212 °F)

Length

120 mm
(5 in)

Width

144 mm, 186 mm
(5.67 in, 7.32 in)

Height

213 mm, 221 mm
(8.39 in, 8.7 in)

Weight

2.3 kg, 2.9 kg
(5.07 lb, 6.39 lb)

Description

The high reliability and the price competitiveness make the DLX series the best proposal in dosing systems market. On request, DLXB (foot mounted) series can be supplied with a stroke length control, which enables - by a dial - to adjust the dosing volume between 20-100%. • Anti-acid plastic casing • IP65 protection degree • Wall (DLX) and Foot mounted (DLXB): • Standard pump head: PP or PVDF body, PTFE diaphragm, ceramic balls, FPM sealings* • Strokes frequency: 120 strokes/min (from 1l/h to 15l/h) - 150 strokes/m (20 l/h) • CE (standard) and CSA certied (on request) • Backlight LCD display • ON/OFF or proportional operating modes • pH – RX – Cl inputs. Measuring ranges: 0÷14pH; -1000 ÷ +1400mV; 0÷2ppm; 0÷20ppm; 0÷200ppm; 0÷2000ppm • Manual air bleed pump head; from 5 to 15l/h automatic air bleed available on request • Basic and Full Menu • Hysteresis • Delay Setpoint setting • Relay output • 4 ÷ 20 mA output • Level probe input • Proximity switch input • Alarm setting
