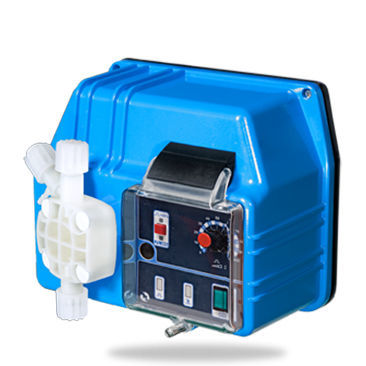

Diaphragm pump BT MA/ADfor chemicalsairsolenoid-driven
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for chemicals, air
- Operation
- solenoid-driven
- Mobility
- stationary
- Domain
- industrial
- Applications
- for control, adjustment, bleed
- Material
- PTFE, PP, ceramic, PVC, polycarbonate, PVDF
- Voltage
- 230 V
- Protection level
- standard, IP65
- Other characteristics
- standard, automatic, flow, wall
- Flow
Min.: 5 l/h
(1.32086 us gal/h)Max.: 80 l/h
(21.13376 us gal/h)- Pressure
Min.: 1 bar
(14.504 psi)Max.: 20 bar
(290.075 psi)- Length
244 mm
(10 in)- Width
162 mm
(6.38 in)- Height
213 mm
(8.39 in)
Description
• Standard pump head: PP or PVDF body, PTFE diaphragm, ceramic balls, FPM sealings*
• 30 – 80 l/h pumps are supplied with PVC pump heads and accessories with fittings for 10×14 tubing
• The casing is in aluminium protected with two coats of epoxy paint
• Manual air bleed pump head; from 5 to 15l/h automatic air bleed available on request
• Control panel protection assured by a transparent polycarbonate cover with gasket
• Level probe input
• IP65 protection degree
• Wall mounted
• CE (standard) and CSA certied (on request)
• Manual flow rate adjustment
• Dual scale adjustment: 0 – 20% & 0 – 100%
Catalogs
BT MA/AD
7 Pages
