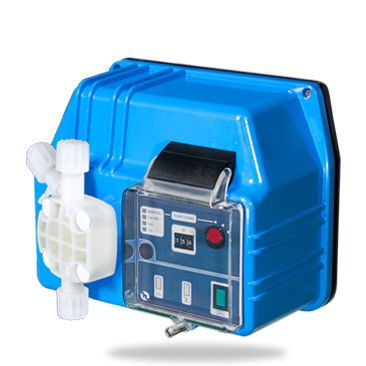

Diaphragm pump BT VFTwaterairsolenoid-driven
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water, air
- Operation
- solenoid-driven
- Mobility
- stationary
- Domain
- industrial
- Applications
- dosing, for control, adjustment, bleed
- Material
- PTFE, PP, ceramic, PVC, polycarbonate, PVDF
- Voltage
- 230 V, 240 V, 110 V
- Protection level
- standard, IP65
- Other characteristics
- standard, automatic, flow, wall
- Flow
Min.: 5 l/h
(1.32086 us gal/h)Max.: 80 l/h
(21.13376 us gal/h)- Pressure
Min.: 1 bar
(14.504 psi)Max.: 10 bar
(145.038 psi)- Length
244 mm
(10 in)- Width
162 mm, 172 mm
(6.38 in, 6.77 in)- Height
203 mm
(7.99 in)
Description
• Standard pump head: PP or PVDF body, PTFE diaphragm, ceramic balls, FPM sealings*
• 30 – 80 l/h pumps are supplied with PVC pump heads and accessories with fittings for 10×14 tubing
• The casing is in aluminium protected with two coats of epoxy paint
• Manual air bleed pump head; from 5 to 15l/h automatic air bleed available on request
• Control panel protection assured by a transparent polycarbonate cover with gasket
• Level probe input
• IP65 protection degree
• Wall mounted
• Strokes frequency: 160 impulses/minute maximum (5-20 L/H models only) - 180 impulses/minute maximum (30-80 L/H models only)
• CE (standard) and CSA certied (on request)
• Manual flow rate adjustment 0÷100%
• Proportional dosing modes (1 x n; 1 : n; 1 x n M; ml x I; L x I; ml x m3; PPM)
• Daily and weekly timer (8 programmes/day)
• Water -meter pulse-sender input
Catalogs
BT VFT
2 Pages
