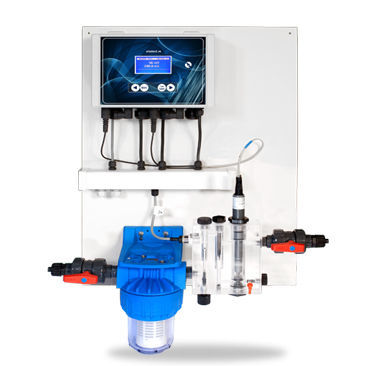

Regulating control unit P Cl-F
automatictemperature

Regulating control unit - P Cl-F - Etatron D.S. - automatic / temperature
Regulating control unit - P Cl-F - Etatron D.S. - automatic / temperature
Add to favorites
Compare this product


Characteristics

Applications
automatic, regulating, temperature

Description

Control and regulating system for free chlorine, made of eSELECT-M1 controller, block valves, connection for tube 10x14 mm, water filter with washable net cartridge 150 microns, methacrylate probe holder with proximity switch and adjustment flow system, manual sampling, free inorganic and organic chlorine probe, (0 – 20) ppm measuring range, probe shows low pH dependence (pH working range 4- 12 pH), chlorine measuring is not affected by isocyanuric acid, surfactants/flocculants presence, the probe is automatic temperature- compensated, 0,7 mt probe cable, 1 manual pump wiring connection available in the central box trunking. The unit required a constant flow rate between 30 and 40 l/h, do not exceed the maximum operating pressure of 1 bar (free discharge at probe holder outlet) while water temperature cannot overcome 45°C. The probe has integrated temperature compensation. Suitable for software EtaCloud connection; optional accessory: connectivity kit.
