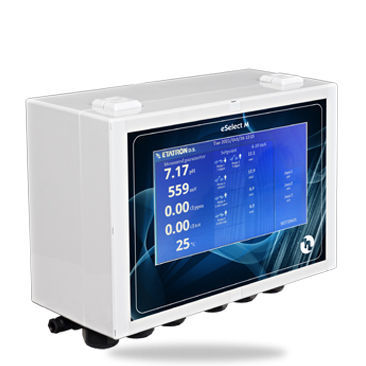

PH controller eSelect M TOUCH

eSelect-M TOUCH series is a family of controllers with four channels measures (+ temperature). The wide 7” touch display and the user-friendly navigation make it a very simple product for the end-user. Predisposed for Eatcloud connection, thanks to the “Connection Kit” (not included with the controller) the eSelect-M TOUCH can be managed remotely. • Measures: pH, Redox (mV), Free Chlorine (ppm) Total • Chlorine (ppm) and temperature (C°) • Standard version: pH – Rx – CL- CL tot. • N.1 4-20mA outputs, programmable from the user, for each measure • Chlorine measure (ppm) by selective membrane sensor or amperometric cell Platinum-Copper • 1 setpoint for each measure, ON/OFF mode or PWM (Pulse Width Modulation); (2 set points only for the first measure) • Adjustable hystesys on setpoint value; delay time on activation relay • Alarm MAX and MIN mode on each measure • Overdosing Alarm (excessive dosing time) for each measure • Alarm relay, NO • LCD Touch Display (800x480 pixel) • Timer built-in to manage start/stop of the controller
