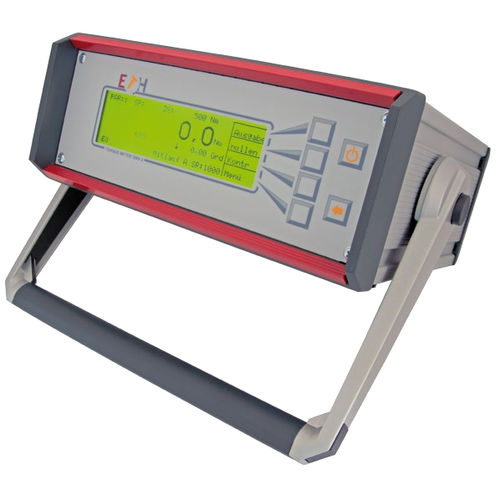

Bench-top torque meter GMV2

calibrationfor torque wrenchesfor screwdriver

Universally applicable • Tool Testing • Production Supervising • Documentation conforming to DIN EN ISO 9001 • Quality Assurance • Test Bench Evaluation The GMV2 is a microprocessor-based measurement and control unit for various torque-based applications. Measurement values for torque, speed and power (and optional angle) that are scanned with appropriate torque sensors in screwing applications and in test benches in labs can be displayed, their compliance with pre-set limits evaluated, and stored. The device is operated in simple steps via a self-explanatory menu. Using a torque transducer with integrated recognition chip, the sensor data will be transmitted automatically into the parameter set by connecting the transducer to GMV2. Access to the device settings can be restricted by using passwords in three levels. Measurement data will be stored in the device in com bination with date and time and they can be printed out on an external printer or exported for further processing. Option: a pulsed tool can be operated about a floating output. Option: integrated power unit for operating a power screwdriver 230 V max. 16 A Standard for active torque sensors • Measurement of torque, speed and power • Measurement modes: tracking, peak (clockwise/ counterclockwise), torque wrench test • Menu-driven operation and adjustment • Storage for 1000 measurements • 50 programmable parameter sets • Power supply 110-240 V • RS 232C port, max. 19200 baud • Software `GMV2-PC-Trans ́ • EMC-proof housin • Multilingual Options •Angle measurement • External control of storing, deleting and printing
