Static torque transducer DRB-IIvoltage output12 Vdcrugged
Add to favorites
Compare this product
Characteristics
- Type
- static
- Output
- voltage output
- Supply voltage
- 12 Vdc
- Protection level
- rugged, IP40
- Torque
Max.: 20 Nm
(14.75 ft.lb)Min.: 0 Nm
(0 ft.lb)- Precision
0.15 %
- Overload limit
500 %
Description

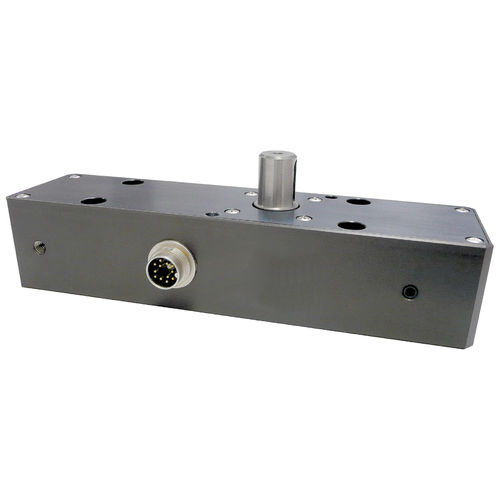

Torque transducer for static applications "DRB-II"
3 torque ranges from ± 0 - 5 Nm to ± 0 - 20 Nm
• Not impacted by axial and radial forces
• Extremely rugged construction
• Optionally integrated signal amplifier
• Integral overload protection
Description
The DRB-II transducer was developed to measure non-rotating torques that are free of axial and flexural forces.
It is primarily deployed in applications where a high safety factor against overload is needed. The device is not affected by axial and flexural forces.
