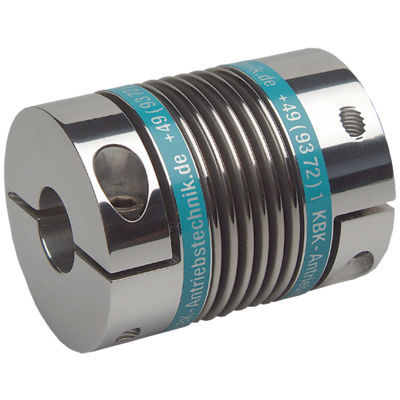

Bellows coupling KB4

for shaftcompactmetal bellows

Metal Bellows Coupling with collet clamps  • Backlash-free metal bellows coupling with clamp hubs  • Hub material: up to 60Nm – aluminum, up from 80Nm - steel  • For shaft diameters from 10 – 80 mm  • High torsional stiffness, compensation of shaft misalignment at low restoring forces  • Easy to assemble  • Perfect bellows coupling for connecting servo motors, e.g. in machine tools, automation techniques, packing machines, wood working machines  • Torque range: 18 – 1400 Nm Metal Bellows Coupling with collet clamps / Hub material: aluminum • Backlash-free metal bellows coupling with clamp hubs  • Hub material: aluminum  • Alternatively to steel executions we recommend our series KB4AL from size 80 - 500  • For shaft diameters from 10 – 70 mm  • High torsional stiffness, compensation of shaft misalignment at low restoring forces  • Easy assembly and low inertia  • Perfect bellows coupling for connecting servo motors, e.g. in machine tools, automation techniques, packing machines, wood working machines • Torque range: 18 – 500 Nm Metal Bellows Coupling with collet clamps, compact • Backlash-free metal bellows coupling with compact clamp hubs • For shaft diameters from 10 – 70 mm  • High torsional stiffness, compensation of shaft misalignment at low restoring forces  • Perfect bellows coupling for connecting servo motors, e.g. in machine tools, automation techniques, packing machines, wood working machines • Torque range: 18 – 1400 Nm Metal Bellows Coupling with split hubs  • Backlash-free metal bellows coupling with split hubs  • For shaft diameters from 10 – 80 mm
