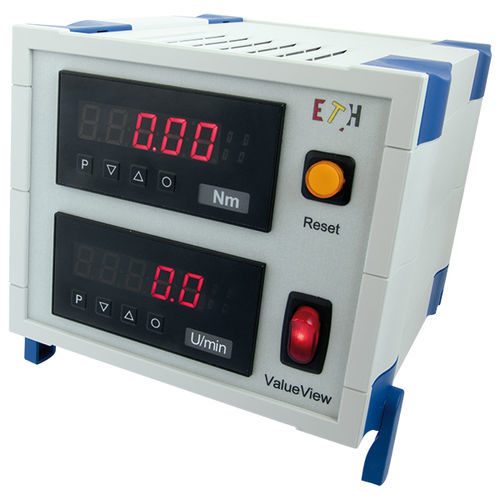

Speed indicator ValueView-D-01

torquewith LED displaytabletop

Supply and display device ValueView-D-01 or active torque transducer with torque and speed display • 24 bit resolution • up to 50 measurements per second • permanent min/max-display • Tara-function • Sensorfeeding • +/- Fullscale-input • Peak value measurement   Device combinations/variations: We offer different variants for this evaluation device. These can be adapted / programmed to the respective customer requirements. To check whether your individual requirement can be implemented, please contact our sales department. The supply and display unit ValueView D-01 gives you in connection with ETH-torque transducers a possibility to show torque values in various manner for a reasonable price. In the standard operating mode “momentary value“ you can read the last measured value alternatively the display can be set to “maximum value” or “minimum value”. The time of taking a reading and the time of the display-cycle can be programmed. On all operating modes a tara-function is available With the +/- full-scale-input it is also possible to show the direction of the measured torque. On displaying of four programmable switching points you can supervise the compliance of set threshold values. Special versions for passivee transducers and for display of speed are available on demand.
