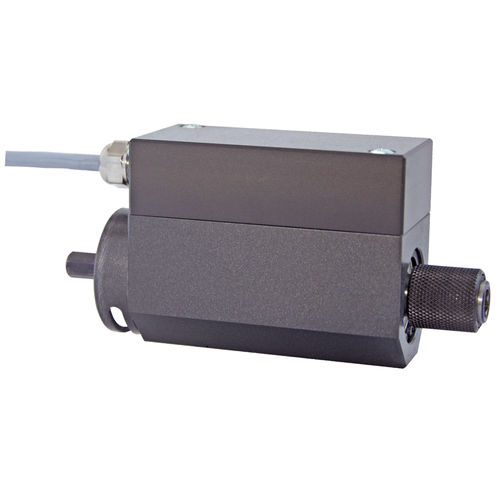

Rotary torque sensor DRFS-1/4"-w-Shex drive0-5 VDC
Add to favorites
Compare this product
Characteristics
- Type
- rotary
- Configuration
- hex drive
- Output
- 0-5 V
- Supply voltage
- DC
- Protection level
- IP40
- Other characteristics
- strain gauge
- Torque
Min.: 0 Nm
(0 ft.lb)Max.: 20 Nm
(14.75 ft.lb)- Precision
0.15 %
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 8,000 rpm
(50,265 rad.min-1)
Description
• universal attachment to standard electric screwdrivers
• rigid connection between transducer and screwdriver
• lockable in any position, thus easy handling
• maintenance-free due to non-contact measured value transmission
• high accuracy through frequency modulation and DMS principle
• high interference immunity due to amplified active signal
• integrated chip for sensor detection in conjunction with evaluation unit GMV2 and ValueMasterBase
