Electrical network analyzer 004656579

voltagepower factorharmonic

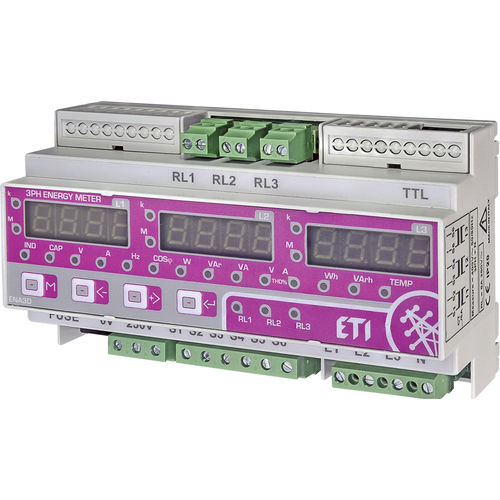

Application Three phase network analyzer is intended for measuring electrical parameters of various loads in industry such as voltage, current, power factor (cos φ), power (W, VAr, VA), single and total harmonic distortion V-I, work hours, ambient temperature. Available in two versions, ENA3 for door mounting and ENA3D for DIN-rail mounting. Display integrated in device shows parameters for each phase separately. 3 independent programmable contact free output relays can be set up for different alarms. Programing is possible directly on device or with connecting to PC by using communication adapter SCUSB485 and free monitoring software Advantages „ Programmable alarm relay (Under/Overvoltage - Overcurrent - Frequency - Low power factor Cosφ - Total harmonic distortion) „ 144x144 panel mounting or 9 modules DIN „ Self-extinguished material UL94 V0 Measurements „ Power factor cosφ inductive & capacitive (four quadrants) „ Three phase voltage & current „ Power: W - WH - VA - VAR - VARH „ Single and total harmonic distorsion (THDs) V/I „ Working hours „ Ambient temperature
