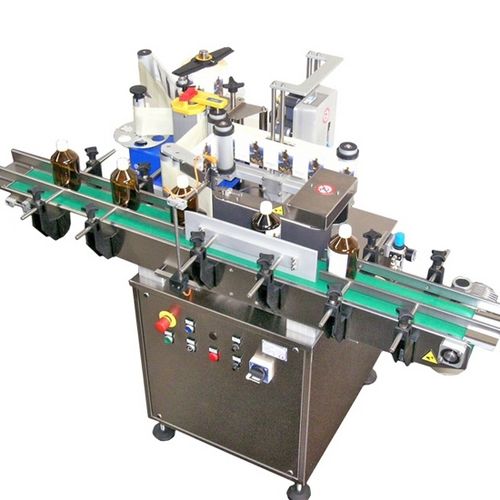

Automatic labelling machine System 1 series
for bottlesfor chemicalsfor the cosmetics industry

Automatic labelling machine - System 1 series - Etipack - for bottles / for chemicals / for the cosmetics industry
Automatic labelling machine - System 1 series - Etipack - for bottles / for chemicals / for the cosmetics industry
Automatic labelling machine - System 1 series - Etipack - for bottles / for chemicals / for the cosmetics industry - image - 2
Automatic labelling machine - System 1 series - Etipack - for bottles / for chemicals / for the cosmetics industry - image - 3
Automatic labelling machine - System 1 series - Etipack - for bottles / for chemicals / for the cosmetics industry - image - 4
Automatic labelling machine - System 1 series - Etipack - for bottles / for chemicals / for the cosmetics industry - image - 5
Automatic labelling machine - System 1 series - Etipack - for bottles / for chemicals / for the cosmetics industry - image - 6
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Product application
for bottles, for chemicals
Applications
for the cosmetics industry, for the food industry, for the chemical industry
Other characteristics
wrap-around, tamper-evident
Throughput

1,500 p/h, 3,000 p/h, 12,000 p/h

Product length

Max.: 250 mm
(9.84 in)

Min.: 8 mm
(0.31 in)

Product width

Max.: 98 mm
(3.86 in)

Min.: 8 mm
(0.31 in)

Product height

Max.: 200 mm
(7.87 in)

Min.: 40 mm
(1.57 in)

Power

700 W, 1,300 W
(0.95 hp, 1.77 hp)

Description

The System 1 series includes a range of automatic label applicators for wrap-around applications on cylindrical products. Labelling systems are fully automatic labelling machines with an integrated conveyor system; they are self-sufficient small labelling lines providing for conveying, handling and labelling. They can therefore be used both offline or connected to other packaging machines (e.g. filling machines). Automatic wrapping systems are ideal for labelling cylindrical jars, bottles, vessels, products made of plastic, glass or metal containing food, chemicals and cosmetics. For wrap-around labelling of bottles, vials and ampoules for pharmaceutical markets you can visit the section devoted to pharmaceutical labelling machines of Etipack Pharma line such as System 1 and Etifiale. System 1 also applies warranty seal labels on cylindrical jars of various sizes. The label, shaped to incorporate the seal, is applied in a simple and effective way. The series provides different models, depending on production needs, the equipment of alarms and controls. The systems offer production speeds from 50 up to 200 pcs / min, in standard configurations, or higher for customized or tailor-made labelling systems.

VIDEO
