Automatic pick-and-place machine CLIPPY

flat cartonssachet

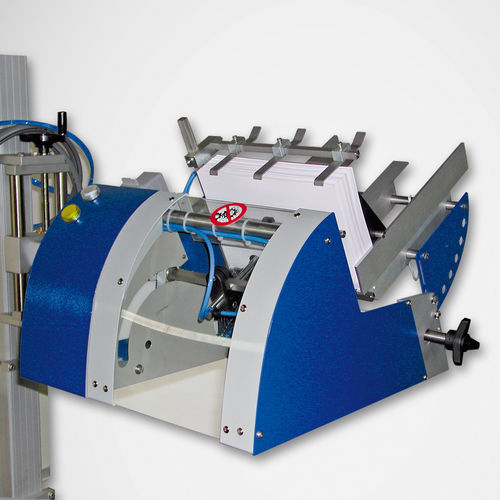

Pick and place Clippy available in pneumatic or brushelss version places flowpack sachets, 2, 3 and 4 sides sachet, CDs, flat cartons and cards made of non-porous materials Clippy is a pick and place machine, a placer that by vaccum pads picks products from a loading stacker and places them horizontally on a packaging line. The placer is ideal to dispense flowpack sachets, 2, 3 and 4 side sachets, coupons, cards and flat boxes made of non-porous materials. Clippy is available in a pneumatic version with a speed up to 50 pcs./min or with burshless motor with a speed up to 120 pcs/min, with single loading stack or multiple loading stack to dispense more products. The programming keyboard, in the brushless version, will allow to set speed and control functions in a user-friendly way: automatic speed adjustment, multiple product distribution, control of missing picking with automatic stop. • Adjustable loading stack • Mechanical device with vacuum pad for horizontal positioning • Control on missing picking • Venturi vacuum pump • Safeguards on kinematic • Separate control box (remote terminal up to 3 m) with integrated PLC* (brushless version) • Separate control panel (remote up to 3 m) • Brushless motor/pneumatic actioning • Base support structure • Start for product picking and placing • Control on minimum load • Programming keyboard* (brushless version) • Vacuum pump (according to products)
