Side label printer-applicator STICK EVO series

for MAP packagingfor cosmetic productsfor boxes

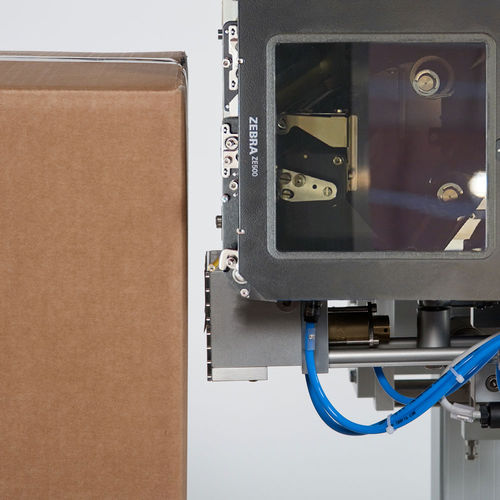

Automatic Print and Apply that applies the last printed label on moving boxes and products without contact Stick Evo is a small automatic Print and Apply system applying the last printed label on moving boxes and products. Stick prints any type of code, images, and variable data coming from the packaging line and applied the last printed label. The core of the Stick Print and Apply system is an industrial thermal transfer printer with dual processor electronics and equipped with a pneumatic applicator blowing the label on the box, or any other moving product, and applying it contactless. This print and apply machine can fit rolls of thermal transfer ribbon (TTR) up to 600 m in length in order to ensure the highest non-stop. Resolution ≤ 8, 12 dots/mm Printing speed 250 mm/s Label width: 104 mm • Drawing unit 120 mm • Label reel 280 mm • Printhead with historical control 8 dot/mm • Interfaces RS232, LAN Ethernet • Display keyboard for machine configuration • Inner rewinder for liner paper • Inner clock for date/time • Ethernet cable • Windows driver • One axle applicator 30 mm stroke • Pad 120×150 mm with Vortec air blow (size customizable upon request) • Quadro elettrico di gestione • Air unit treatment • Photocell for label on pad control
