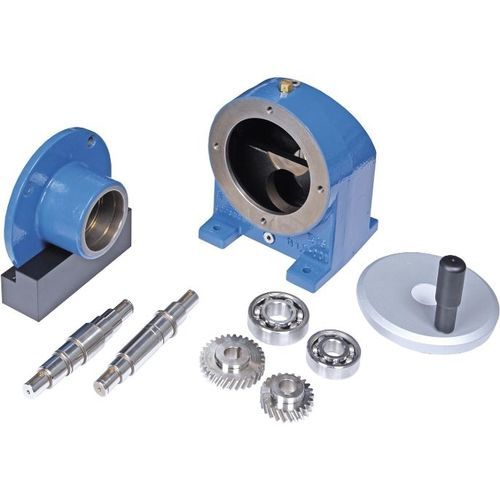

Cylindrical gear ETS series

helical

Learning objectives of the system for your training Assessing assembly drawings, layout plans, and parts lists Selecting suitable test equipment and create test reports Creating assembly plans for Creating assembly plans for proper assembly and disassembly Developing test criteria for functional tests Planning maintenance including environmentally-friendly disposal of material and operating fluids Analyzing faults and determining components to be replaced Assembling technical subsystems with subsequent function check Selecting tools and resources by means of function plans and design drawings Analyzing, planning and organizing workflows (assembly, disassembly and preventive maintenance measures) Educational gear self-assembly kit Modified fits – assembly and disassembly possible without press-in or injection tools No use of lubricants (oil, grease) – clean workplace Corrosion-resistant components: all components are either made from stainless materials (e.g., stainless steel bearings) or surface-treated (painted / powder-coated housing Individual parts are clearly arranged in high-quality foam inserts Missing parts can be detected immediately Stored in a space-saving plastic case and covered from dust Roller unit (optional) for easy and quick transportation The gear self-assembly kit for the planetary gear has a modified fit system so no special tools such as presses or pullers are required for assembly. Using mechanical drawings or detailed assembly instructions, learners can assemble the gear independently and perform a function test using the hand wheel.
