Broadband antenna 3140B

AMbiconicallog-periodic

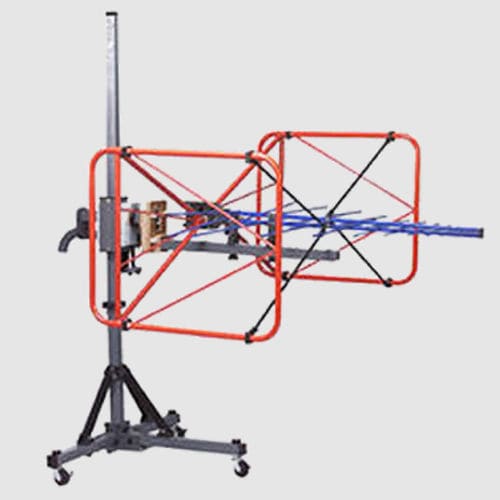

​ETS-Lindgren's Model 3140B BiConiLog is one in a series of hybrid antennas designed for broadband EMC radiated immunity (RI) measurements. The model 3140B BiConiLog features a patented T-Bow Tie element design that significantly improves low frequency performance, compared to conventional biconical or other hybrid antennas. When setting up the model 3140B, the T-Bow Tie elements are easily attached/detached with hand tightened screw knobs. Once assembled, the antenna is self-standing when placed balun end down on the ground plane. A tough powder coat finish protects the antenna. The Model 3140B BiConiLog is not designed to be used for RE (radiated emissions) measurements. For RE applications, ETS-Lindgren recommends the model 3142E Biconilog. Key Features Two Year Warranty Fits Compact Chambers Tough Powder Coat Finish Physical Specifications Height: 76.65 cm (30.18 in) Length: 149.3 cm (58.78 in) Width: 161.5 cm (63.58 in) Weight: 10 kg (22.05 lb) Electrical Specifications Connectors: Type N Impedance (Nominal): 50 Maximum Continuous Power: 1 kW Pattern Type: Directional Peak Power: 1.3 kW Polarization: Linear VSWR (Average): 2.0:1
