EMC test chamber MIL-STD 461modular
Add to favorites
Compare this product
Characteristics
- Test type
- EMC
- Configuration
- modular
- Length
4.27 m, 5.49 m, 5.79 m
(14'00" , 18'00" , 18'11" )- Width
4.3 mm, 5.5 mm, 5.8 mm
(0.2 in, 18 in, 19 in)- Depth
2 m, 3 m
(6'06" , 9'10" )
Description

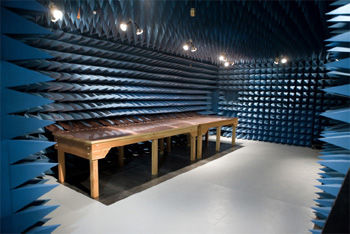

ETS-Lindgren's MIL-STD-461 chamber is designed for testing in accordance with Mil-Std 461E, Mil-Std 461F and Mil-Std-461G. The chambers shell is constructed with Series 81 modular cell-type shielding panels. Interior end walls, portions of the sidewalls and ceiling are lined in the manner required by MIL-STD-461, using EMC-24PCL absorber.
Key Features
10kHz 40GHz RE102 and RE103 frequency range
Minimum Chamber Performance:
6dB reflectivity Loss from 80MHz to 250MHz
10dB Reflectivity Loss Above 250MHz
Conducted Emissions
Conducted Susceptibility
Radiated Susceptibility
RF Specifications:
RE: 30 Hz 40 GHz
RS: 30 Hz 40 GHz
Electrical Specifications
Frequency Minimum: 10 kHz
Frequency Maximum: 40 GHz
Product Options
Full EMC Test System Solution
