Radio antenna 3164-06
horncompactridged waveguide

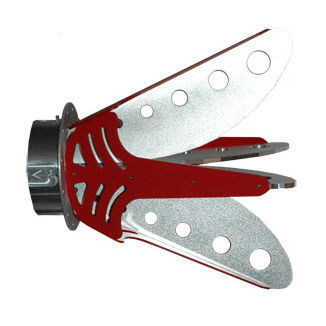

Radio antenna - 3164-06 - ETS Lindgren - horn / compact / ridged waveguide
Radio antenna - 3164-06 - ETS Lindgren - horn / compact / ridged waveguide
Add to favorites
Compare this product


Characteristics

Network
radio
Type
horn
Other characteristics
compact, ridged waveguide
Frequency

Min.: 300 MHz

Max.: 6,000 MHz

Gain

25 dB

Description

ETS-Lindgren's Model 3164-06 Open Boundary Quad-ridged Horn Antenna's open boundary design is similar to two double-ridged waveguide antennas orthogonally to each other. The antennas surprisingly compact size offers improved pattern and gain when compared with enclosed quad-ridged horns of similar dimensions. The 3164-06 has exceptional bandwidth, with operating frequency band for optimum performance from 300 MHz to 6 GHz. Two orthogonally placed input feeds allow this antenna to generate both linear and circular polarized measurements across the entire frequency band, without manual polarization. Key Features Linear or Circular Polarization (With Hybrid) Compact Design Flat Gain For Upper 2/3 of Range Physical Specifications Length: 51.4 cm (20.24 in) Width: 50 cm (19.69 in) Height: 50 cm (19.69 in) Weight: 9.3 kg (20.50 lb) Electrical Specifications Connectors: SMA Female (2) Cross Polarization Isolation: >25 dB Impedance (Nominal): 50 Maximum Continuous Power: 50 W Pattern Type: Directional Polarization: Dual Linear Product Options Custom Cases
