Radio antenna 3164-10
GPSWiFiGSM

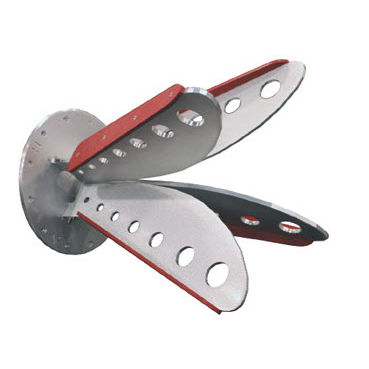

Radio antenna - 3164-10 - ETS Lindgren - GPS / WiFi / GSM
Radio antenna - 3164-10 - ETS Lindgren - GPS / WiFi / GSM
Add to favorites
Compare this product


Characteristics

Network
radio, GPS, WiFi, GSM
Type
horn
Other characteristics
compact, linear polarized, quad-ridged
Frequency

Min.: 400 MHz

Max.: 10,000 MHz

Description

ETS-Lindgren's Model 3164-10 Open Boundary Quad-ridged Horn Antenna's design makes this antenna unique in both appearance and performance. Designed to measure wireless devices for Over-The-Air (OTA) performance, this unit features excellent gain, with low VSWR. Numerically modeled, the 3164s open boundary design is similar to two double-ridged waveguide antennas, placed orthogonally to each other, providing the ability to measure the two principal components of a radiating electric field. Key Features 400 MHz to 10 GHz Frequency Range Excellent Gain Over Entire Range Dual Polarization Compact, Lightweight Design Frequency Range and Gain With a frequency range of 400 MHz to 10 GHz, the model 3164-10 covers all wireless frequency bands, including cell phone, Wi-Fi, WiMAX and GPS bands. Additional applications include UWB wireless testing (3 GHz to 10 GHz) and lower frequency testing (400 MHz to 3 GHz) for GSM, PCS, Wi-Fi, WiMAX, etc. applications. This antenna has excellent gain characteristics across the frequency range. Dual Linear Polarization The two-input design allows for the generation (or sensing) of two orthogonal linear polarized signals. Compact, Lightweight Design The 3164-10s compact, lightweight design makes it ideal for use as both a tripod or wall mounted antenna.
