Anechoic test chamber FACT 5

electromagneticEMCimmunity

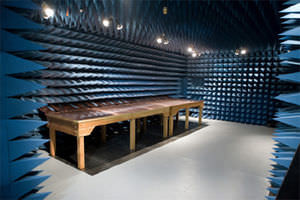

ETS-Lindgren's FACTTM (Free-space Anechoic Chamber Test-site) 5 Chambers offer the semi-anechoic radiated emissions (RE) and fully anechoic radiated immunity (RI) compliance test capability for most international EMC compliance regulations. ETS-Lindgren's FACT 5 Meter EMC Chambers, for Full Compliance testing, offer the semi-anechoic radiated emissions (RE) and fully anechoic radiated immunity (RI) compliance test capability for most international EMC compliance regulations. FACT 5 Chambers offer the ability to perform RE testing at a 5-meter distance while preserving the ability to perform full compliance testing of applicable 3-meter standards. Results obtained with 5-meter distance have better correlation to those obtained at a 10-meter distance than the ones measured at 3-meter distance. FACT 5 chambers achieve their broadband performance using a unique arrangement of hybrid and ferrite tile absorber. The design was modeled using the proprietary numerical electromagnetic software responsible for creating chambers that set new standards for anechoic performance Key Features 26 MHz to 40 GHz Frequency Range Emissions and Immunities Measurements Full Compliance Testing for Radiated Emissions: ANSI C63.4 FCC Parts 15 and 18 EN 50147-2 CISPR 11/EN55011 CISPR 16/EN55016 CISPR 22/EN55022 CISPR 32/EN55032 VCCI V-3/2003.04 SAE J551 SAE J1113 (Requires Chamber Modification to Accommodate Full Vehicle) Full Compliance Testing for Radiated Immunity: IEC 61000-4-3/EN61000-4-3 SAE J551 SAE J1113 Eligible for FCC 3m Class B Facility Filing Available NSA Performance Options (May Require Chamber Modifications): 4.0 dB Plus 3.5 dB
